Using the Script

There are a few steps that need to be completed before starting the discovery process:

Create a device inventory file
Make changes to the procurve-config-file.txt file (if needed)
Decide how you want store the password
Update the mac.txt file to match the format of the switches

Create the device inventory file

You must create a csv file that contains the following:

switch ip
netmiko vendor_id
switch hostname
username
format that the device needs to output mac addresses per interface

The supported Netmiko vendor_ids are:

hp_procurve
cisco_ios
cisco_xe
cisco_nx
aruba_cx

The format for each line in the device-inventory file is:

ip_address,vendor_id,hostname,user,command to display mac addresses per intf

Here is an example of a device-inventory file:

192.168.10.52,hp_procurve,Procurve-2920-24,mhubbard,show mac-addre
192.168.10.253,cisco_xe,3850,mhubbard,show mac addr int
192.168.10.54,cisco_xe,4500,mhubbard,show mac addr int
192.168.10.15,cisco_ios,2960s,mhubbard,show mac addr int

In this example, there are hp_procurve, cisco_xe and cisco_ios devices. You can have as many devices in the file as you need. I have had as many 50 in one file.

Create one line for every switch that you want to process.

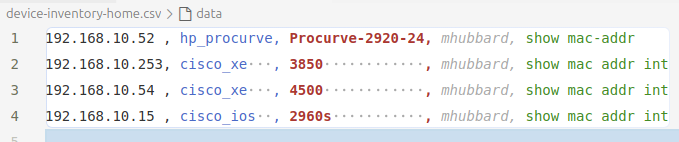

You can use either a spreadsheet program or a text editor to create the inventory file but it must have a ".csv" file extension. If you use vscode, there is a plugin called Rainbow CSV that allows you to work with csv files in vscode. It also allows you to use SQL syntax to query the file. Very nice if the file gets to be long. Below is a screenshot to the Rainbow CSV RBQL Console. RBQL is short for Rainbow Query Language.

screenshot

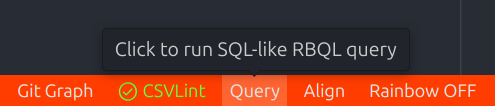

Rainbow CSV also has an align feature that makes it easier to read the columns. Here is a screenshot of a device file opened in vs code with Rainbow csv:

screenshot

Save the file as device-inventory-<site name>.csv in the root of the project folder.

For example, device-inventory-HQ.csv

There is a sample file named device-inventory-area1.csv in the project. The site name is just a tag so that you can have as many device-inventory files as you need. At a large customer this might be the MDF and then a series of IDFs.

CSVLENS

There is also a great terminal tool called csvlens. It's an open source project on GitHub csvlens. It's cross platform and runs on Mac/Linux/Windows.

Install on Mac/Linux

Homebrew is easiest way to install

brew install csvlens and your are done.

If you don't use homebrew you can go to the releases page, download the tarball and install using:

tar xvf csvlens-x86_64-unknown-linux-gnu.tar.xz
cd csvlens-x86_64-unknown-linux-gnu
sudo mv csvlens /usr/bin

The mv command moves csvlens to `/usr/bin' so that you can call it from anywhere.

The problem with installing csvlens this way is that you don't get automatic updates. This is a very active project and updates usually add nice features. You will have to manually download the tar file and repeat the process.

Version 0.13.0 release notes:

    Add --color-columns to display each column in a different color (#39)
    Add --prompt to show a custom prompt message in the status bar (#135)
    Expose freeze columns option in library usage (#124 by @jqnatividad)
    Improve visibility of line numbers and borders
    Add aarch64 release targets (#55)

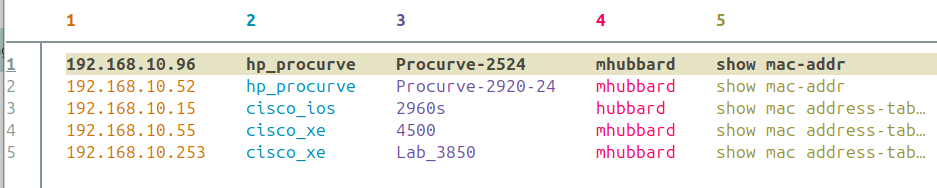

The --color-columns is a nice addition. To view the device-inventory-home.csv file with colored columns use csvlens --no-headers --color-columns device-inventory-home.csv.

Create an alias for csvlens

You can create an alias in your ~/.bashrc or ~/.zshrc file:

# csvlens with colored columns
alias csvlens='()csvlens --no-headers --color-columns $1'

Then use csvlens device-inventory-home.csv to get colors and no header.

screenshot

Install CSVLENS on Windows

winget install --id YS-L.csvlens

It's a little more of a challenge to on Windows to create the alias. You will need to use PowerShell as your terminal and update the profile text file. First, open a powershell terminal. I recommend installing the Windows Terminal so that you can have cmd.exe, PowerShell, and WSL terminals in one place. Then enter notepad $PROFILE to open the PowerShell profile for editing. Paste this into the bottom of the text file:

# Simplified function to run csvlens with specified arguments using @args
function Invoke-CsvLensWithArgs {
    csvlens.exe --color-columns --no-headers @args
}

# Alias for the 'Invoke-CsvLensWithArgs' function (explicitly set to Global scope)
Set-Alias -Name cl -Value Invoke-CsvLensWithArgs -Scope Global

Save and close the file. Then back in the PowerShell terminal enter:

echo $PROFILE
type $PROFILE
. $PROFILE

This will:

display the path to the $PROFILE file
print the contents of the $PROFILE file
reload the profile so that the alias works

One big advantage to using Windows terminal with PowerShell is that it stores the history of your commands in a file. So you can close the terminal but not lose your history. PowerShell also comes with builtin aliases for several Linux commands like:

cat - The Linux cat command to concatenate or display text files.
clear - Clear the screen.
cp - Linux copy command to copy files.
echo - Echo text to the screen (stdout in Linux terms)
ls - Linux List Files command
mkdir - Linux Make Directory command
mv - Linux move files command
popd - Linux command to pop to the top level directory off the stack
pushd - Linux command to push the current directory to the top of the stack
pwd - Linux Print Working Directory command. Outputs the directory you are in.
rm - Linux Remove Files command

If you are creating bash scripts popd adn pushd are useful. Having these aliases built in is great if you work on Mac, Linux and Windows since Mac/Linux share the same commands.

Install Bat on Windows

As long as we are installing cool utilities on Windows we should install bat. Bat is like cat on Linux but works on Windows also.

winget install sharkdp.bat

After that you can do bat device-inventory-home.csv and get a nice formatted, colored output. The advantage to bat over csvlens is that it works with any text file.

Password

Handling credentials is always an area of concern. The script supports two methods:

Create an environment variable "cyberARK" and save the password to the variable.
include -p 1 on the command line to be prompted for the password

Neither method is perfect but using either the environment variable or being prompted is more secure than having a csv file with plaintext passwords in it.

Creating an Environment Variable

On Windows you use control panel to create a "user environment variable". You can follow these instructions user environment variables. You have to log out and log in again to make the environment variable active.

Set environment variable on macOS/Linux

From the terminal that you will run the script in export cyberARK=<Password>, for example export cyberARK=Sup3rs3cr3t. You have to do the export in the terminal that the script will be run in. If you are using vscode and debugging in vscode, that means the vscode terminal.

Being prompted for the password

This is easier than setting up environment variable. You simply add -p 1 to the command line.

For example, to run the script for a site named HQ:

python3 config-pull.py -s HQ -p 1

When you press enter, you will see "Input the Password:" on the command line. Enter the password and press [enter]

Update the -config-file.txt file

This file contains all of the show commands that will be sent to the switches. The project includes sample files for hp_procurve, cisco_ios, and cisco_xe switches. The sample files have over 50 commands in them, including many that may not apply to the customer:

show lacp peer
show lacp local
show lacp mad-passthrough
show dhcp-server binding
show dhcp-server pool

If you don't need them for a particular customer you can just open the file and delete any that you don't need or add any that you do need. The goal is to have all the data needed to satisfy the Change Request requirements.

The script looks for <vendor-id>-config-file.txt. You have to use that exact format. Since the script supports the following Netmiko vendor_ids:

hp_procurve
cisco_ios
cisco_xe
cisco_nx
aruba_cx

The config files will be named:

hp_procurve-config-file.txt
cisco_ios-config-file.txt
cisco_xe-config-file.txt
cisco_nx-config-file.txt
aruba_cx-config-file.txt

Warning

On older switches, reading a lot of data can cause the CPU to go to 90% or higher! This will cause issues if OSPF or EIGRP is running and may cause the script to fail with a timeout. If this happens, remove some commands from the config-file and try again.

Pulling the mac address table

For pulling the mac-address table, which most customers want you to do before a cutover, I build an exclude statement using a regex to skip uplink ports. Here is an example for HPE Procurve that doesn't pull mac addresses for ports on modules A and B. These were uplinks on one of the switches that I developed the script on.

show show mac-address | ex "A|B"

In the example, the | symbol means logical OR. This works because the switch displays the mac address in lower case.

 show mac-address | ex "A|B"

  ----------------- ------------------------------- ----
  00c0b7-f4b43a     C4                              1
  282986-40a427     H24                             1

Notice that port C4 has a lowercase a and b in the address and port H24 has a lowercase a. Since the regex is case sensitive this works.

On a non-modular switch you can't use:

sh mac-address | exclude 24|25

 Status and Counters - Port Address Table

  MAC Address   Port    VLAN
  ------------- ------- ----
  00e04c-360348 5       10

Because port 11 has 25 in the mac address

b00cd1-372591 11 10

And was excluded from the output.

Here is a regex that will match only port 24 so that you can exclude port 24.

show mac-address | exclude " [0]*24[ ]+"

 Status and Counters - Port Address Table

  MAC Address   Port    VLAN
  ------------- ------- ----
  bc9fe4-c342ca 12      1
  00e04c-360348 5       10

You can also use the regex "|" OR symbol:

show mac-address | exclude " [0]*5|24[ ]+"

 Status and Counters - Port Address Table

  MAC Address   Port    VLAN
  ------------- ------- ----
  bc9fe4-c342ca 12      1

Notice that if you wanted to exclude port 1, 2, 3, or 4, you would add a space after the number. Otherwise the regex would match 11, 21, 31, 41.

Or just forget the regex! The goal is to not include mac-addresses from uplinks and system MACs. But you would need to know what ports to exclude ahead of time. You can just dump the whole table. The only time I have seen this cause a problem was on a Cisco 6509 core that had six 48 port blades and several IDFs connected to the fiber card. There are a lot of mac in that table. The script worked but it took a while!

I use this site to test/develop regex expressions.

Cisco IOS mac address table exclude

The Cisco IOS has this regex show mac address-table | ex STATIC|Po|1/0/49

This excludes ports with:

STATIC
Port Channels
interface 1/0/49

Or just forget the regex! The goal is to not include mac-addresses from uplinks and system MACs. But you would need to know what ports to exclude ahead of time. You can just dump the whole table. The only time I have seen this cause a problem was on a Cisco 6509 core that had six 48 port blades and several IDFs connected to the fiber card. There are a lot of mac in that table. The script worked but it took a while!

Cisco XE mac address table exclude

show mac address-table | ex Po|ffff.ffff.ffff|static

Again, the goal is to exclude uplinks.

Run the discovery script

Now that the project is set up and the inventory file is created, you can run the script. Make sure you are in the Discovery directory and run:

source bin/activate

or

.\venv\Scripts\activate

To activate the the virtual environment.

What options are available

You can run the script with -h to get help:

python3 procurve_Config_pull.py -h


usage: procurve_Config_pull.py [-h] [-e EVENT] [-l LOGGING] [-p PASSWORD] [-s SITE] [-t TIMEOUT]

-s site, -l 1 create log.txt, -p 1 prompt for password, -t 1-9 timeout, -e W,I,M,D,E to pull logs

options:
  -h, --help            show this help message and exit
  -e EVENT, --event EVENT
                        -e W,I,M,D,E to pull switch logs
  -l LOGGING, --logging LOGGING
                        use -l 1 to enable ssh logging
  -p PASSWORD, --password PASSWORD
                        use -p 1 to be prompted for password
  -s SITE, --site SITE  Site name - ex. HQ
  -t TIMEOUT, --timeout TIMEOUT
                        use -t 1-9 to set timeout
(Discovery)

What do the arguments do

The only required argument is -s site. This references the device-inventory file.

Collecting switch logs

Reviewing switch logs before a cut over can help you understand the health of the network. For example, you may find OSPF neighbors bouncing or an STP issue. Obviously you if the network is large you can't review every switch in detail. But looking at key switches such as cores and distribution is worth a few minutes.

Using grep you can parse hundreds of logs in a matter of seconds. For example:

grep -Eir "Blocked by LACP"
test-CL-2930-48-1-log-1.txt:I 02/02/24 17:20:55 00435 ports: port 22 is Blocked by LACP

Or check STP:

Procurve-2920-24-CR-data.txt:I 01/10/24 19:01:57 03816 stp: VLAN 850 - Root changed from 32768: (this device)

I can't go into everything you should look for, but with some practice you will look like a genius!

Procurve logs

The procurve switches allow you to pull five different types of logs:

Warning (W) - This log contains warning messages
Informational (I) - This log can grow very large and may need a large timeout value. If you have a lot of switches to discovery and they have large informational logs you may want to skip them.
Major (M) - This log contains major messages
Debug (D) - This log contains debug messages
Error (E) - This log contains error messages

If you want to pull logs from the switch add -e and the type of log. You can collect 1 or all 5. Separate the values with a comma. For example:

-e W,I,M,D,E

If you use -e W the script will send show logging -r -W

Cisco Logs

Cisco doesn't support all the options that the procurve does. If you want to collect logs on a cisco use -e 1. This will send show logging to the switch.

Setting the Password

If you want to be prompted for a password add -p 1. If you don't use -p 1 you must set an environment variable cyberARK with the password. That is covered above in the "password" section.

SSH Logging

If you want to enable ssh logging add -l 1. You would do that to troubleshoot if you are getting "time out" errors when the script tries to connect to a switch. It does not log anything from the switch.

Timeout

You can modify the timeout value using -t. Note: the number sets the timeout value in 100s of seconds. If you use -t 2 it will wait up to 200 seconds for the operation to complete.

Examples

The minimum is to use -s for the site:

python3 config-pull.py -s HQ

To include the Warning log:

python3 config-pull.py -s HQ -e W

To include all logs and set timeout to 2:

python3 config-pull.py -s HQ -e W,I,M,D,E -t 2

To be prompted for a password:

python3 config-pull.py -s HQ -p 1

Note

you may have to use python instead of python3 depending on your OS.

I recommend running the script on one switch the first time instead of a long list of switches. That will let you see the content of the show commands and make changes if needed before spending time running it on a long list of switches.

The files will be saved in the following directories:

CR-data - files that are ready for viewing
Interface - files that need further processing
Failure-Logs
port-maps - files for creating port maps
Running - The "show running structured" output for each switch

If you are having timeout or authentication issues, enable logging. Here is a sample output of the log.txt file that netmiko creates:

DEBUG:paramiko.transport:starting thread (client mode): 0xb4b346d0
DEBUG:paramiko.transport:Local version/idstring: SSH-2.0-paramiko_3.4.0
DEBUG:paramiko.transport:Remote version/idstring: SSH-2.0-Mocana SSH 6.3
INFO:paramiko.transport:Connected (version 2.0, client Mocana)
DEBUG:paramiko.transport:=== Key exchange possibilities ===
DEBUG:paramiko.transport:kex algos: ecdh-sha2-nistp256, ecdh-sha2-nistp384, ecdh-sha2-nistp521, diffie-hellman-group-exchange-sha256, diffie-hellman-group14-sha1
DEBUG:paramiko.transport:server key: rsa-sha2-512, rsa-sha2-256, ssh-rsa
DEBUG:paramiko.transport:client encrypt: aes256-ctr, rijndael-cbc@lysator.liu.se, aes192-ctr, aes128-ctr
DEBUG:paramiko.transport:server encrypt: aes256-ctr, rijndael-cbc@lysator.liu.se, aes192-ctr, aes128-ctr
DEBUG:paramiko.transport:client mac: hmac-sha1-96, hmac-sha1
DEBUG:paramiko.transport:server mac: hmac-sha1-96, hmac-sha1
DEBUG:paramiko.transport:client compress: none
DEBUG:paramiko.transport:server compress: none
DEBUG:paramiko.transport:client lang: <none>
DEBUG:paramiko.transport:server lang: <none>
DEBUG:paramiko.transport:kex follows: False
DEBUG:paramiko.transport:=== Key exchange agreements ===
DEBUG:paramiko.transport:Kex: ecdh-sha2-nistp256
DEBUG:paramiko.transport:HostKey: rsa-sha2-512
DEBUG:paramiko.transport:Cipher: aes128-ctr
DEBUG:paramiko.transport:MAC: hmac-sha1
DEBUG:paramiko.transport:Compression: none
DEBUG:paramiko.transport:=== End of kex handshake ===
DEBUG:paramiko.transport:kex engine KexNistp256 specified hash_algo <built-in function openssl_sha256>
DEBUG:paramiko.transport:Switch to new keys ...
DEBUG:paramiko.transport:Adding ssh-rsa host key for 10.112.254.60: b'47708eeea6cbecf20b5916d675feca3d'
DEBUG:paramiko.transport:userauth is OK
INFO:paramiko.transport:Auth banner: b'******************************************************************************\nThis system is the property of Michael Hubbard.\n\nUNAUTHORIZED ACCESS TO THIS DEVICE IS PROHIBITED.\n\nYou must have explicit permission to access this device.\n\nAll activities performed on this device are logged.\nAny violations of access policy will result in disciplinary action.\n****************************************************************************** \n\n'
INFO:paramiko.transport:Authentication (password) successful!

Here is a sample output from running the script:

procurve_Config_pull.py -s area1 -e W


-------------------------------------------------
Reading devices from: device-inventory-area1.csv
----------------------------------------------------------
01/21/2024, 19:02:50 Connecting to switch Procurve-2920-24
----------------------------------------------------------

Exec time: 0:00:01.279461

Could not connect to Procurve-2920-24 at 192.168.10.50. The Credentials failed.  Remove it from the device inventory file
----------------------------------------------------------
01/21/2024, 19:02:51 Connecting to switch Procurve-2920-48
----------------------------------------------------------

HP-2920-24G-PoEP#

--------------------------------------------------------
processing procurve-config-file.txt for Procurve-2920-48
--------------------------------------------------------
processing show logging -W for Procurve-2920-48
--------------------------------------------------------
Writing show logging -W commands to /home/mhubbard/04_Tools/Discovery/CR-data/Procurve-2920-48-log-W.txt
--------------------------------------------------------
collecting show interface for Procurve-2920-48
--------------------------------------------------------
collecting show system for Procurve-2920-48
--------------------------------------------------------
collecting show cdp detail for Procurve-2920-48
--------------------------------------------------------
collecting show interfaces brief for Procurve-2920-48
--------------------------------------------------------
collecting show lldp neighbors for Procurve-2920-48
--------------------------------------------------------
collecting show mac address for Procurve-2920-48
--------------------------------------------------------
collecting show arp for Procurve-2920-48
--------------------------------------------------------
Collecting show running-config from Procurve-2920-48
--------------------------------------------------------
Writing show commands to /home/mhubbard/04_Tools/Discovery/CR-data/Procurve-2920-48-CR-data.txt
-------------------------------------------------
Writing MAC addresses to /home/mhubbard/04_Tools/Discovery/port-maps/data/Procurve-2920-48-mac-address.txt
-------------------------------------------------
Writing ARP data to /home/mhubbard/04_Tools/Discovery/port-maps/data/Procurve-2920-48-arp.txt
-------------------------------------------------
Writing show run to /home/mhubbard/04_Tools/Discovery/port-maps/data/Procurve-2920-48-arp.txt
-------------------------------------------------
Writing interfaces json data to /home/mhubbard/04_Tools/Discovery/Interface/Procurve-2920-48-system.txt
-------------------------------------------------
Writing interfaces json data to /home/mhubbard/04_Tools/Discovery/Interface/Procurve-2920-48-interface.txt
-------------------------------------------------
Writing interfaces brief data to /home/mhubbard/04_Tools/Discovery/Interface/Procurve-2920-48-int_br.txt
-------------------------------------------------
Writing cdp neighbor data to /home/mhubbard/04_Tools/Discovery/Interface/Procurve-2920-48-cdp.txt
-------------------------------------------------
Writing show lldp data to /home/mhubbard/04_Tools/Discovery/Interface/Procurve-2920-48-lldp.txt

-------------------------------------------------------
Successfully created config files for Procurve-2920-48
-------------------------------------------------------

Data collection is complete.
Total running time: 0.0 Hours 1.0 Minutes 44.67 Seconds

Failure to connect to a switch

If a switch does not respond or if the the credentials are incorrect, a message will be printed to the console and the script will continue processing the next switch.

It's really disruptive to the discovery process if switches fail. That means you have to fix the problem and then create a new inventory file with just the failed switches, then rerun it. I was doing a discovery at a customer with over 240 switches. They had so many configuration issues and username/password was one of them. I ended up with around 40 switches that I couldn't log into.

Use nmap to verify switches are up

I recommend saving the switch IP addresses in a plain text file, one per line, and then using nmap to verify that ssh is working.

For example, create a new text file named ip.txt. If you are using vs code and the Rainbow csv extension you can simply run a query on the device-inventory file:

select a1

That will return all the IP addresses.

At the bottom of vs code, click query.

screenshot

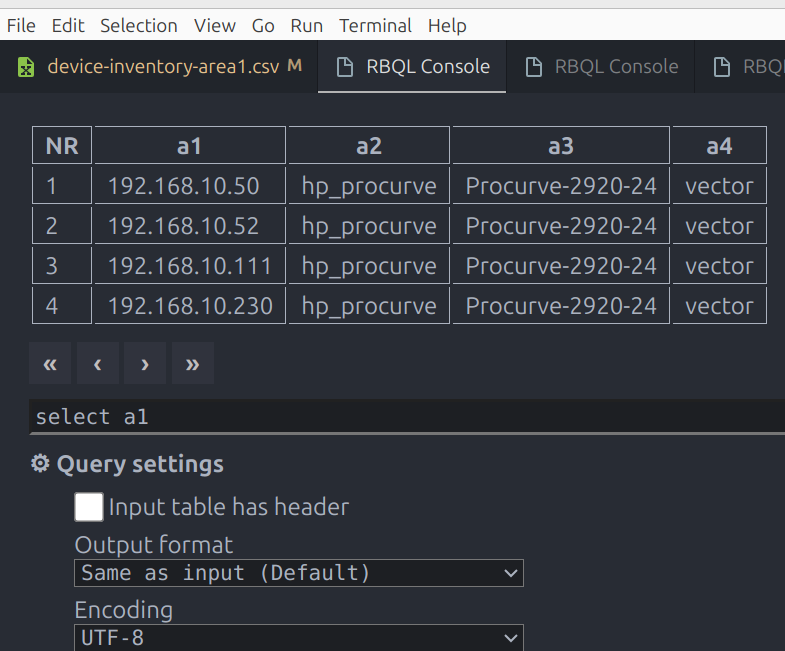

When the query page opens, enter select a1 and click run.

screenshot

The query will return a list of IP addresses, 1 per line. Select all lines and paste them into ip.txt.

192.168.10.50
192.168.10.52
192.168.10.111
192.168.10.230

Run nmap with these arguments:

nmap -v -p 22 -iL ip.txt --reason -oN ip-dead.txt

This tells nmap to use ip.txt for the target IP addresses, include the reason and save the output to ip-dead.txt.

In this example only 3 devices are working:

Nmap done at Sun Jan 7 20:05:46 2024 -- 4 IP addresses (3 hosts up) scanned

If you don't get 100% you can open ip-dead.txt and search for "down".

Use nmap to verify the credentials

There isn't a simple way to verify that the credentials will work. If you have permission to run the nmap ssh-brute script you can verify using:

nmap -p 22 --script ssh-brute --script-args userdb=user.lst,passdb=pass.lst -iL ip.txt

Put your username in user.lst and your password in pass.lst.

You will get back a report for each device:

Nmap scan report for 192.168.10.52
Host is up (0.0033s latency).

PORT   STATE SERVICE
22/tcp open  ssh
| ssh-brute:
|   Accounts:
|     vector:H3lpd3sk - Valid credentials
|_  Statistics: Performed 2 guesses in 2 seconds, average tps: 1.0

Nmap scan report for 192.168.10.111
Host is up (0.0028s latency).

PORT   STATE SERVICE
22/tcp open  ssh
| ssh-brute:
|   Accounts: No valid accounts found
|_  Statistics: Performed 2 guesses in 4 seconds, average tps: 0.5

Then use grep -Eir -b6 "No valid" accounts.txt to find the devices with no valid accounts.

Grep Arguments:

E - extended
i - case-insensitive
r - recursive
-b6 - show 6 lines before the match

Building a list of switches

Not all customers will have a clean list of switch IP addresses and host names. If there is a management network you may be able to look at the arp table and pull out the switches. As a last resort you can use the following process to build a list of switches.

Run this nmap command to find devices with ssh and snmp open. Most devices that have ssh and snmp open are switches. You may have to do some additional filtering.

sudo nmap -sU -sS -T4 -sC -p U:161,T:22 -oA procurve-scan -n -Pn --open --stylesheet https://raw.githubusercontent.com/honze-net/nmap-bootstrap-xsl/master/nmap-bootstrap.xsl <target ips>

Note

The stylesheet is from honze-net-nmap-bootstrap-xsl. This is a repository for creating nmap reports. Well worth a look.

The -oA procurve-scan argument will create the following files:

procurve-scan.xml - a standard XML file with the xsl link embedded
procurve-scan.nmap - an nmap format file
procurve-scan.gnmap - a greppable nmap format file

The files will be owned by the root account since we need sudo for the UDP scan. Here are the permissions:

$ ls -l procurve-scan*
-rw-r--r-- 1 root root  477 2024-01-14 17:13 procurve-scan.gnmap
-rw-r--r-- 1 root root  926 2024-01-14 17:13 procurve-scan.nmap
-rw-r--r-- 1 root root 3.6K 2024-01-14 17:13 procurve-scan.xml

Run the following to take ownership of the files:

sudo chown $USER procurve-scan*

The results:

ls -l procurve-scan*
-rw-r--r-- 1 mhubbard root  477 2024-01-14 17:13 procurve-scan.gnmap
-rw-r--r-- 1 mhubbard root  926 2024-01-14 17:13 procurve-scan.nmap
-rw-r--r-- 1 mhubbard root 3.6K 2024-01-14 17:13 procurve-scan.xml

The output will look something like this:

sudo nmap -sU -sS -T4 -sC -p U:161,T:22 -oA procurve-scan -n -Pn --open --stylesheet [nmap-bootstrap.xsl](https://raw.githubusercontent.com/honze-net/nmap-bootstrap-xsl/master/nmap-bootstrap.xsl) 192.168.10.52
Host discovery disabled (-Pn). All addresses will be marked 'up' and scan times will be slower.
Starting Nmap 7.91 ( https://nmap.org ) at 2024-01-14 17:09 PST
Nmap scan report for 192.168.10.52
Host is up (0.0032s latency).

PORT    STATE         SERVICE
22/tcp  open          ssh
| ssh-hostkey:
|_  1024 cb:a8:d6:c7:da:bd:67:53:91:8c:c0:1b:49:d1:a1:2d (DSA)
| ssh-os:
|_  SSH Banner: SSH-2.0-Mocana SSH 6.3\x0D
161/udp open|filtered snmp
| snmp-info:
|   enterprise: Hewlett-Packard
|   engineIDFormat: unknown
|   engineIDData: 000098f2b3fe8880
|   snmpEngineBoots: 108
|_  snmpEngineTime: 5h40m26s
MAC Address: 98:F2:B3:FE:88:80 (Hewlett Packard Enterprise)

Host script results:
|_smbv2-enabled: ERROR: Script execution failed (use -d to debug)

Nmap done: 1 IP address (1 host up) scanned in 15.03 seconds

The "SSH Banner: SSH-2.0-Mocana SSH 6.3" is the ssh server that is running on the procurve switch. Over the years HPE has used different ssh servers but this banner will help identify Procurve switches.

Let's look at the contents of the procurve-scan.gnmap file:

# Nmap 7.91 scan initiated Sun Jan 14 17:13:39 2024 as: nmap -sU -sS -T4 -sC -p U:161,T:22 -oA procurve-scan -n -Pn --open --stylesheet https://raw.githubusercontent.com/honze-net/nmap-bootstrap-xsl/master/nmap-bootstrap.xsl 192.168.10.52
Host: 192.168.10.52 ()  Status: Up
Host: 192.168.10.52 ()  Ports: 22/open/tcp//ssh///, 161/open|filtered/udp//snmp//Hewlett-Packard SNMPv3 server/
# Nmap done at Sun Jan 14 17:13:54 2024 -- 1 IP address (1 host up) scanned in 15.09 seconds

If you are on Mac/Linux/Windows WSL or have git bash (or MobaXterm) installed on Windows you can use grep to pull out a list of the switches from procurve-scan.gnmap file. Use the following grep/awk command:

bash grep -Eir "22/open/tcp//ssh///, 161/open|filtered/udp//snmp//" procurve.gnmap | awk '{ print $2 }' 192.168.10.52

The grep found just the "ssh, snmp" string and awk printed the data in column 2.

Review the bootstrap report

The "stylesheet" argument creates an xsl file to format the XML file that the script creates. You will be able to right-click on the xml file and open it in Firefox to see a nicely formatted report. This isn't required, it's just nice extra and you can give it the customer as documentation. Here is a simple example from my home lab:

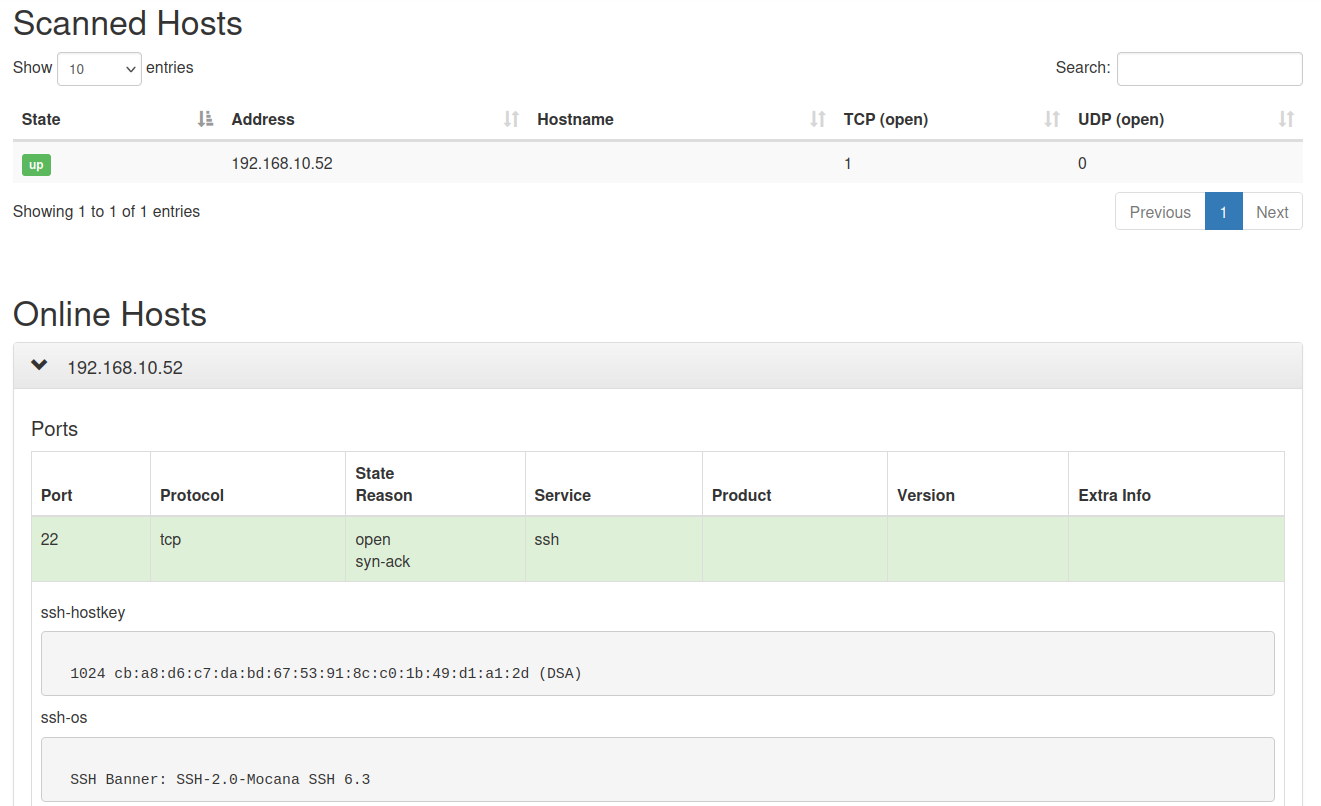

screenshot

Opening the report in a Chromium based browser

If you want to open the report in a Chromium browser you will need to do the following:

Open this page in Chrome/Edge
Paste the text from procurve-scan.xml into "Option 1: Copy-paste your XML document here"
Open nmap-bootstrap-xsl in a text editor and on line 8, delete - doctype-system="about:legacy-compat"
Paste the text into "Option 2: Option 1: Copy-paste your XSL document here"
click Transform XML
Save the new text as procurve-scan.html. You lose a little bit of the report but it's still usable.

Alternative ways to view the report in a Chromium browser

The URL restriction occurs because the xsl file comes from an https server (github) and the file is on disk. If you use "settings, Developer tools, console", you will see this message:

procurve-scan.xml:3  Unsafe attempt to load URL
https://raw.githubusercontent.com/honze-net/nmap-bootstrap-xsl/master/nmap-bootstrap.xsl
from frame with URL
file:///home/mhubbard/04_Tools/Discovery/procurve-scan.xml.
'file:' URLs are treated as unique security origins.

Use Chrome or edge browser with the allow --allow-file-access-from-files flag

Chromium based browsers provide a flag to allow local file access. This is a quick way to view the report. But keep in mind that there is a security risk if you don't close the browser after reviewing the report because it will open files without a warning.

On Linux

Navigate to the Chrome folder. On a debian based system this is /opt/google/chrome. Then start chrome using the following command:

cd /opt/google/chrome
$ ./chrome --allow-file-access-from-files

Now you can open procurve.html in Chrome and view the report. If you use this feature often, you can create an alias in the ~/.zshrc file

# start chrome and allow local file read
alias chrome-local='cd /opt/google/chrome;./chrome --allow-file-access-from-files'

On Windows

You can copy this Chrome shortcut to the desktop and add the flag to the "Target" section:

"C:\Program Files\Google\Chrome\Application\chrome.exe" --allow-file-access-from-files

Use the new shortcut to open procurve.html in chrome and view the report. Again, close the browser after you are finished with the report to eliminate the security risk.

Use Firefox

To use firefox:

Type "about:config" in the Firefox address bar
Search for "security.fileuri.strict_origin_policy"
Change the setting to "false"

Now you can open procurve.html in Firefox and view the report. Don't forget to set security.fileuri.strict_origin_policy back to false when you are done.

Use a local http server

You can use the xsl file, nmap-bootstrap.xsl, that comes from cloning the repository. The drawback to this is that if you want to share the report, you have to include the xsl file.

Change the nmap command to:

nmap -sU -sS -T4 -sC -p U:161,T:22 -oA procurve-scan -n -Pn --open --stylesheet nmap-bootstrap.xsl 192.168.10.52

Now spin up an http server using python:

python3 -m http.server 8000

Open a Chromium based browser and enter:

http://localhost:8000/procurve-scan.xml

The report will open and not be a limited version.

Learning to use the python http server is a good skill. For example, if you have Aruba APs running in IAP mode and there are a mix of models you have to use http to upgrade them. This method works great on a laptop.

References

Emoji codes used in the panel function

If you want to expand on the script or change the emojis:

Emoji Codes for Status Panels

Purpose	Emoji	Unicode Code	Description
Success	✅	`\u2705`	Checkmark
Error / Failure	❌	`\u274C`	Cross mark
Warning	⚠️	`\u26A0\uFE0F`	Warning sign
Info / Notice	ℹ️	`\u2139\uFE0F`	Info symbol
Timeout / Wait	⏱️	`\u23F1\uFE0F`	Stopwatch
Processing / Running	🔄	`\u1F501`	Clockwise arrows
Connecting	🔌	`\u1F50C`	Plug
Save / Write	💾	`\u1F4BE`	Floppy disk
Search / Discovery	🔍	`\u1F50D`	Magnifying glass
Network	🌐	`\u1F310`	Globe
Firewall / Security	🔥	`\u1F525`	Flame
DNS / Naming	🏷️	`\u1F3F7\uFE0F`	Label
System Boot / Start	🚀	`\u1F680`	Rocket
Power Off / Shutdown	⏻	`\u23FB`	Power symbol
Build / Compile	🛠️	`\u1F6E0\uFE0F`	Wrench and hammer
